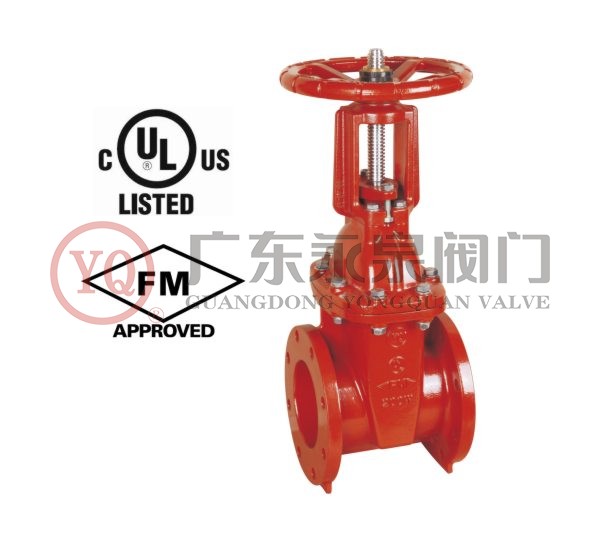

American National Standard Resilient Seated Gate Valve
Our gate valves are cULus and FM listed/approved
FM approved means that the product has passed all severe tests mandated by Factory Mutual and is approved by FM for use in
building structures insured by Factory Mutual Insurance.
UL listed means that the product has been tested, has passed all the stringent tests mandated by UL and is listed in the UL
catalogue of Fire Protection Equipment.
C UL US listing means it conforms to both Canadian and American market’s safety requirement.
Complied Standards
Product design is in accordance with ANSI/AWWA C509, and ANSI/AWWA C515 as well.
Flange connection complies with ANSI B16.1 Class 125.

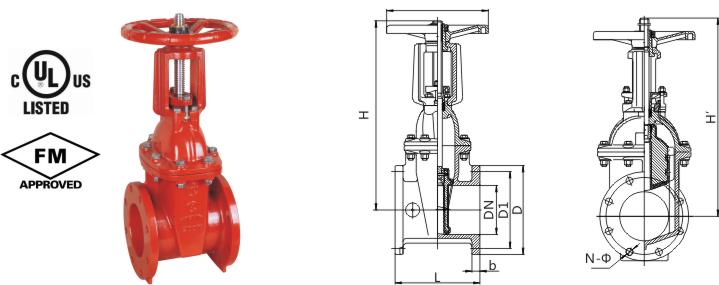

Face-to-face dimension complies with ANSI/ASME 16.10, as well as BS 5163, DIN3202, ISO 5752 and GB/T 12221
Test complies with ANSI/AWWA C509.
