Resilient Seated Gate Valve (Non-rising stem flanged)
When the non―rising stem gate valve opens, its total height has not changed. It saves installation space, applying widely and
is suitable for large dimensions or relative small installing space field.
Complied Standards
Product design and Manufacture is in accordance with GB5135.6-2003.
Flange connection complies with GB/T17241.6 as well as DIN 2501, EN1092, ISO70005.2

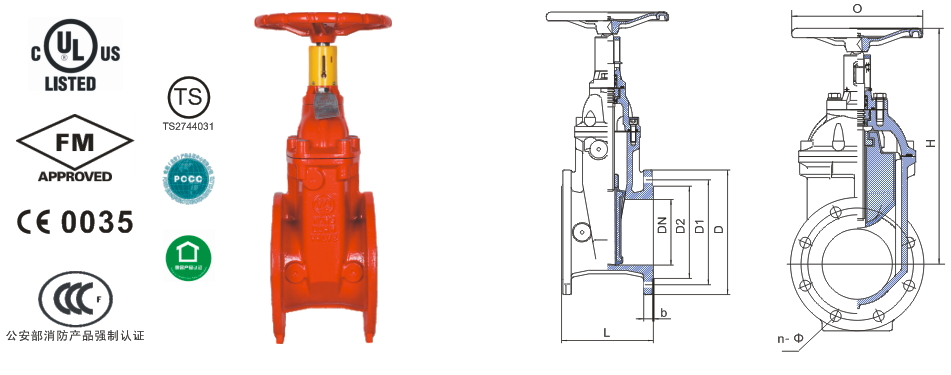

Face-to-face dimension complies with GB/T12221 as well as DIN 3202, ISO5752.
Inspection and acceptance comply with GB5135.6-2003.
